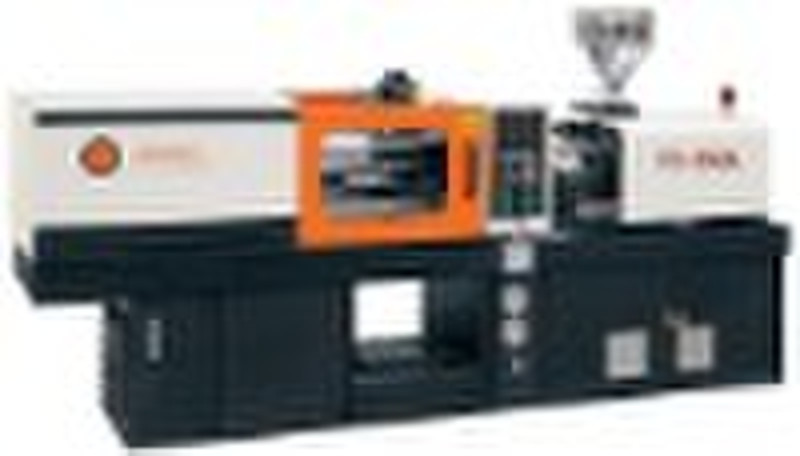

direct hydraulic injection molding machine

ItemsUnitFD-350AScrew diametermm657080Screw L/D ratioL/D21.52017.5Theoretical shot volumecm3102911931558Maximum shot weight (PS)g94610941434oz33.438.650.5Maximum injection pressurekg/cm2222719201470Injection ratecm3/sec307356465Plasticizing capacity(PS)kg/hr148195240Screw speed (HT/LS)N.m/rpm2758/225Screw speed (LT/HS)N.m/rpm2618/238Clamping forceton357Opening strokemm1030Minimum mold thicknessmm320Open daylightmm1350Space between tie-barsmm665×665Plate dimensionmm1000×1000Ejector strokemm200Ejector forceton7.9Pump/motor powerhp(kW)60(45)Hydaulic system pressurekg/cm2140Barrel heating powerkW28Oil tank capacityL2000Machine dimensions (approx.)m7.9×1.6×2.1Machine weight (approx.)ton16CONTROL UNIT Bright-easy-to-read LCD display Multiple language screens (selectable) Quality control function 90 sets of mold m emory Production control function Production assistant function Statistic Process Control (SPC) Alarm record function Parameter change record function System self-diagnostic function Inputs and outputs monitor Printer connection function Robot connection function Emergency stop button at front and rear of the machine Low system oil level alarmInjection Unit Eight injection pressure and speed control Five hold pressure control Injection pressure and speed switched either by step or slope control Real injection speed and pressure curve display Injection compression function Three screw rotating speed and pressure display on screen Three back pressure control Real back pressure curve display Automatic carriage movement (independent control, two advance and retract pressure and speed ) Intrusion function Pre-suck back and suck back function Automatic purge function P.I.D. temperature control Heating status display Heater cut-off temperature setting Cold start protection Hydraulic oil temperature monitor Cooling collar temperature monitor Control cabinet temperature monitor Temperature keeping function Pre-heating function Alarm turns off heater function Nitride d screw and barrel Linear displacement transducer controllinginjection
