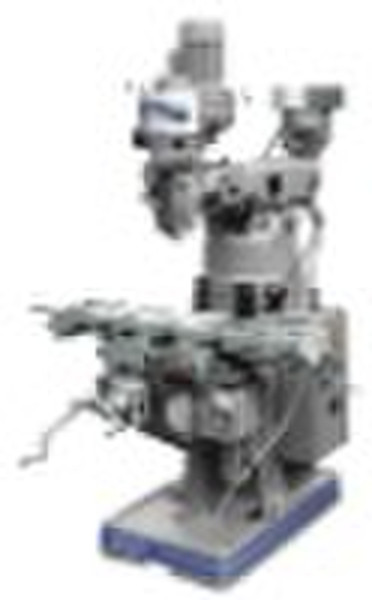

X6325E Radial universal milling machine

Model X6325E(?)(XU6325)Item InchMetricTable size(WxL) 10"x44"250x1120 mmTable feed(longitudinal) 27.55"700 mm Table feed(cross) 11.8"300 mm Table(vertical) 15.75"400 mm T-slot(No./width/pitch) 3/0.625"/2.56"3/14/65 mmMax.loading of table 440 ibs200 kgsRange of table power feed X/Y (8steps) 0.71"-12.12"/min18-308 mm/minFeed motor 1/3 H.P.0.25 kWSpindle taper R-8 or ISO30#Spindle travel 5"127 mm Spindle nose to table 1.18"-17"30-430 mmSpindle axis to vertical guide way 6.7"-18.5"170-470 mmHead movementside to side +/-90 degreesHead movementFront to back +/-45 degreesSpindle speedsRange(RPM) 65-4760Spindle speeds number 16Spindle feed range .0019/.0035/.0058 ipr0.047/0.09/0.148 mmprSpindle motor(2 speeds) 2.5 H.P.1.8 kWRotation of overarm 360 degreesStroke of slotting head 60-350 t/min6 stepsStroke adjustment 0.12"-3.94"3-100 mmSlotting head motor 1/3 H.P.0.25 kWOverall dimension(LxWxH) 66.9"x59.5"x81.1"1700x1510x2060 mmWeight 2650 lbs 1200 kgsPacking size 59"x59"x74.8"1500x1500x1900 mm
